ValueCAN 4-2

Low-Cost High Performance CAN FD - USB Interface with IP65 Aluminum Enclosure

General Specifications:

  • USB OS support: Windows 7 / 8 / 8.1 / 10 and Linux (Linux coming soon)
  • Fully USB-powered with electrical isolation

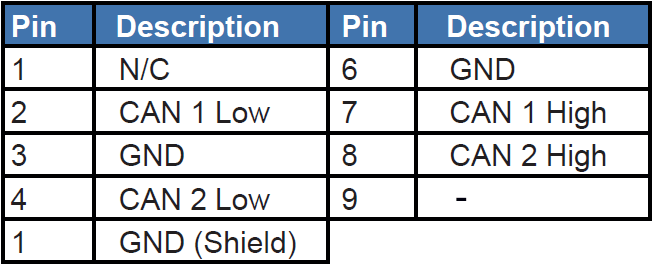

  • Industry-standard 9-pin D-sub connector pinout
  • Integrated 1 meter USB cable with Type-A and Type-C options
  • LEDs indicate transmission or reception of CAN traffic as well
    as error states for each channel
  • LED-illuminated strain relief on USB cable for USB status
  •  J2534 compliant for CAN and ISO15765
  • RP1210 compliant for CAN and J1939
  • Field-upgradeable flash firmware
  • Vehicle Spy Trial setup tool for baud rates
  • CE compliant
  • One-year limited warranty
  • Dimensions: 64 × 41 × 21 mm (2.52” × 1.60” × 0.82”)
  • Weight: 91g (0.20 lb)
  • Python Example: https://github.com/intrepidcs/python_ics
  • ICSneoAPI Example: https://github.com/intrepidcs/icsneoapi



Network Specifications – CAN / CAN FD:

  •  2x CAN FD / CAN 2.0 channels (Bosch MCAN core) with MCP MCP2562FD PHY
  • Compatible with DeviceNet and CANopen
  • Double-buffered CAN transmission
  • Software selectable CAN termination
  • CCP protocol hardware acceleration
  • Listen-only mode support
  • Termination check feature
  • Error frame transmit support



Timing Specifications:

  • 64-bit timestamping to accuracy of 25 ns with no overflow
  • Simultaneous operation on both CAN networks
  • Transmit message double-buffering on all networks, allowing back-to-back message transmission

* Specifications subject to change without notice. Please contact Intrepid Control Systems for details. Volume discounts and private label distribution agreements available. All trademarks mentioned are trademarks of their respective companies.
